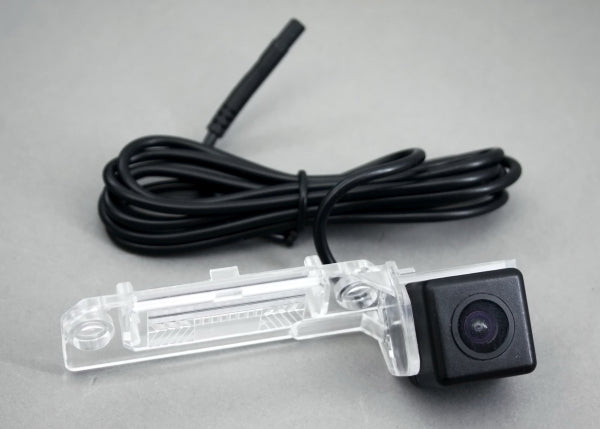

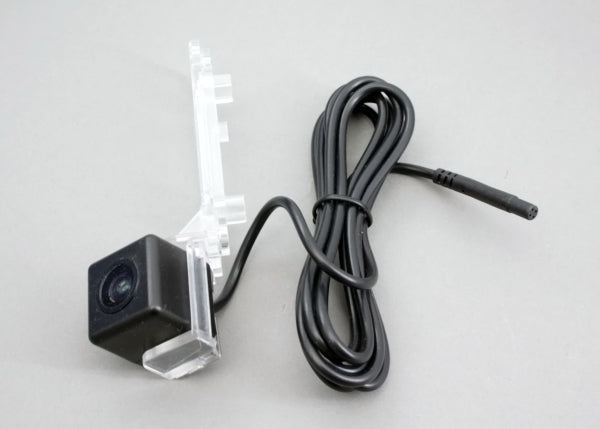

LAVWCM13 Volkswagen rear view camera

Rear view camera, which makes it easier to park the car in reverse. Suitable for all non-factory multimedia systems with a linear video signal input for the rear view camera.

Base measurements width 23mm length 72mm

Suitable for cars:

• Volkswagen Polo Sedan (2008-2009)
• Volkswagen Passat B5 2001-2005
• Volkswagen Passat B6 2006-2013
• Volkswagen Tiguan
• Volkswagen Touareg
• Volkswagen Scirocco
• Volkswagen Jetta
• Volkswagen Sharan

•  Skoda Fabia
•  Skoda Superb

Technical data:
• The rear view camera, fixed in place of the license plate lamp, replacing the old bulb socket with a bulb socket with a camera
• Iðpreserves the factory iðappearance, no need to drill holes
• Image sensor: color
• TV color system: PAL
• Resolution: 480 TV lines
• Lens visibility angle: 170 degrees
• Minimum lighting: 0.1 - 0.5 lux

Camera settings:
1. Green wire ( jumper ). Parking lines, after crossing the parking lines disappear.
2. White wire ( jumper ). PAL/NTSC system selection. Standardðas PAL, after cropping NTSC.
